Reinforcing Heavy-Duty Logistics Pavements: A Case Study of the Vecsés Truck Parking Facility

Project Background

Logistics hubs require robust infrastructure capable of withstanding the relentless stress of heavy freight transport. In Vecsés, Hungary, a new 8,000 m² truck parking facility was developed to serve as a critical rest and staging area for heavy goods vehicles. Given the continuous presence of fully loaded trucks, the engineering team faced the challenge of designing a concrete pavement that would resist deformation, cracking, and surface degradation over its lifespan.

To address these demands without relying on traditional, labor-intensive steel reinforcement, the project specifications called for a modern fiber-reinforced concrete (FRC) solution. ArmoTec 40 mm polypropylene macrofiber was selected to provide comprehensive 3D reinforcement throughout the concrete matrix.

Engineering Challenges and Design Goals

Designing a parking area for heavy freight involves mitigating several specific risks associated with high static and dynamic loads. The primary engineering objectives for the Vecsés site included:

• Load Distribution: Managing the intense point loads exerted by the dual tires of 24-ton loaded trucks.
• Shrinkage Mitigation: Controlling plastic and drying shrinkage across a massive 8,000 m² continuous slab to prevent uncontrolled cracking.
• Joint Durability: Ensuring high load transfer efficiency across sawn joints to prevent edge spalling during truck maneuvering.
• Construction Efficiency: Streamlining the paving process by eliminating the need for welding and laying heavy steel mesh.

Key Technical Parameters

The structural design of the parking lot was based on rigorous calculations to ensure long-term performance under extreme conditions. The finalized specifications were as follows:

• Total Paved Area: 8,000 m²
• Maximum Design Load: 24 tons (gross weight of loaded freight trucks)
• Slab Thickness: 20 cm (200 mm)
• Concrete Grade: C35/45

The choice of C35/45 concrete provided a high-strength matrix, while the 20 cm thickness ensured adequate structural depth to prevent punching shear and excessive deflection under the heavy axle loads.




The Role of ArmoTec Macrofiber

Traditional steel mesh is often prone to placement errors, such as lying too low in the slab where it provides minimal benefit against surface cracking. To overcome this, the engineers opted for a uniform, three-dimensional reinforcement approach using ArmoTec 40 mm macro-synthetic fibers.

Dosage Rate: 2.5 kg/m³

The 40 mm fiber length was specifically matched to the 20 cm slab thickness, ensuring optimal anchorage and pull-out resistance. At a dosage of 2.5 kg per cubic meter, the fibers created a dense, supportive network within the concrete. This dosage was carefully calibrated to deliver maximum post-crack ductility and shrinkage control without negatively impacting the workability and pumpability of the C35/45 mix.

Construction Process and Implementation

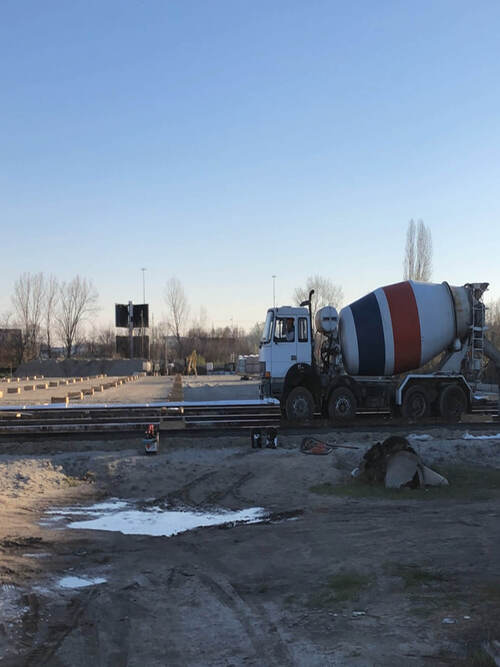

The execution of the project required precise coordination between the concrete batching plant and the paving crew on-site. The ArmoTec fibers were introduced directly into the concrete mixer at the batching plant. This method guaranteed a homogeneous distribution of the macrofibers throughout the entire volume of the mix before it was transported to the Vecsés site.

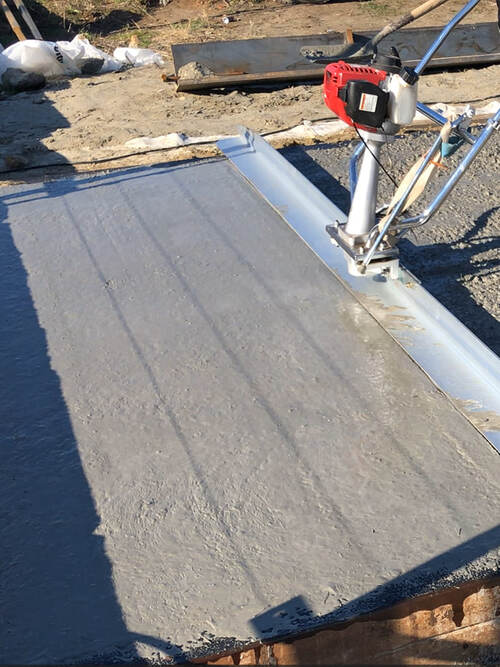

Upon arrival, the fiber-reinforced concrete was poured, compacted, and leveled using advanced laser screeding equipment. The absence of steel mesh significantly accelerated the paving process, allowing the contractors to achieve high daily output rates. Following the initial set, the surface was finished with power trowels to create a dense, wear-resistant top layer suitable for heavy tire traffic.

Final Outcomes and Benefits

The integration of ArmoTec polypropylene fibers into the concrete mix delivered measurable advantages for the Vecsés truck parking facility:

• Superior Crack Management: The 3D fiber network effectively arrested micro-cracking caused by plastic and drying shrinkage, resulting in a highly aesthetic and durable surface across the 8,000 m² area.
• Enhanced Structural Integrity: The fiber reinforcement improved the concrete's residual tensile strength, allowing the 20 cm slab to successfully bear the repetitive 24-ton loads without structural fatigue.
• Improved Joint Performance: Better aggregate interlock was achieved at the saw cuts, minimizing edge breakdown and extending the time between maintenance cycles.
• Optimized Construction Logistics: By removing the need for steel reinforcement installation, the project timeline was shortened, and labor costs were reduced.

Summary

The successful delivery of the heavy-duty truck parking lot in Vecsés, Hungary, highlights the superiority of modern synthetic macrofiber reinforcement in industrial and logistics applications. By combining a robust C35/45 concrete mix, a 20 cm structural thickness, and an optimized dosage of 2.5 kg/m³ of ArmoTec 40 mm fibers, the project team created a highly resilient pavement. This solution not only met the rigorous demands of 24-ton loaded trucks but also provided a faster, more cost-effective, and longer-lasting alternative to traditional reinforcement methods.
