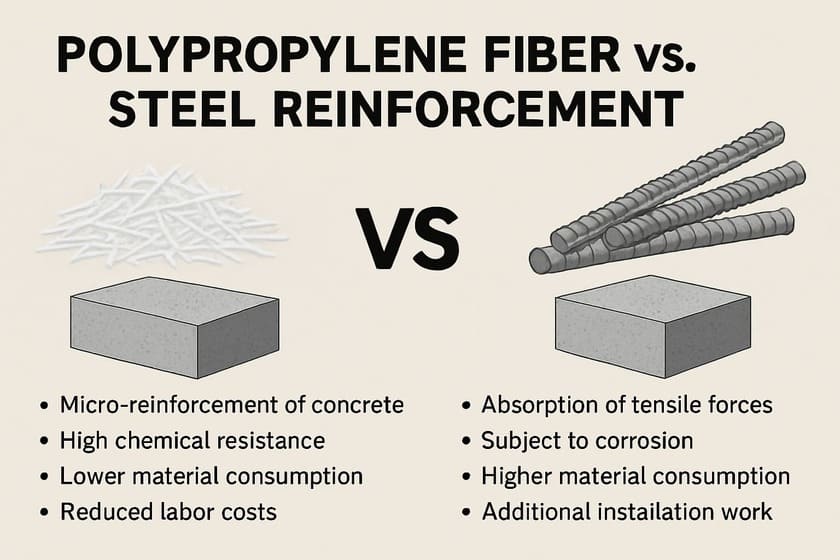

When designing concrete structures, it is important to immediately determine the reinforcement method. Not only mechanical strength, but also service life, load resistance and operating costs depend on this. Let's look at two approaches: adding polypropylene fiber to the mixture and classic steel reinforcement.

Characteristics of materials

Polypropylene fiber is a rigid synthetic fiber 12-54 mm long, produced from primary polypropylene. The fibers are evenly distributed in the concrete mixture at the mixing stage. The main purpose is micro-reinforcement of concrete, control of shrinkage cracks and increase of impact strength. The material has high chemical resistance, is not subject to corrosion and does not weigh down the concrete mixture.

Steel reinforcement is steel rods of various diameters from 6 to 40 mm, placed in areas of tensile stress. The main function is to absorb tensile forces and ensure the bearing capacity of reinforced concrete structures. Reinforcement requires precise calculation and professional installation.

Comparative analysis of material consumption

The consumption of polypropylene fiber is from 1 to 2.5 kg per cubic meter of concrete, according to the manufacturers' recommendations. To control shrinkage cracks and basic micro-reinforcement, 1-1.5 kg/m3 is sufficient, and for increased requirements for impact strength, 2-2.5 kg/m3 is used. The material is easily dosed by automatic systems and evenly distributed in the mixture without additional operations. The reinforcement coefficient of polymer fiber is 1.8 times higher than that of steel fiber.

For comparison, steel fiber is consumed in the amount of 25 kg per cubic meter of concrete, which is 10-25 times higher than the consumption of polypropylene fiber by weight.

Steel reinforcement is consumed in much larger quantities - from 80 to 200 kg per cubic meter of reinforced concrete. The specific consumption depends on the type of structure: 80-120 kg/m3 is required for foundations, 120-180 kg/m3 for floors, and 150-200 kg/m3 for columns and beams. Each element of reinforcement requires individual calculation and precise placement. In industrial floors, the diameter of the reinforcement is selected depending on the expected loads.

Economic Comparison

The cost of polypropylene fiber varies from 4 to 5 euros per kilogram, which is 3-10 euros of additional costs per cubic meter of concrete. At the same time, there are no costs for cutting, bending, installation and knitting, which reduces overall labor costs by 30-40% and shortens construction times.

Steel reinforcement costs around euro per kilogram, but the total material costs are 50-169 euro per cubic meter. To this are added the costs of cutting and bending (15-20% of the material cost) and installation work (25-35%). The total cost of reinforcement is 65-232 euro per cubic meter.

Influence on the properties of concrete

Polypropylene fiber has virtually no effect on the compressive strength of concrete (change within ±5%), but significantly increases tensile strength by 10-25% and bending strength by 15-35%. The most significant improvement is observed in impact toughness - an increase of 3-10 times. Fiber effectively controls the development of microcracks, preventing their transformation into large defects.

Steel reinforcement radically changes the operation of a concrete structure, increasing tensile strength by 10-20 times. The load-bearing capacity of the structure increases several times, and its rigidity and seismic resistance increase significantly. Reinforcement allows for the creation of structures with large spans and high loads.

Durability and performance characteristics

Polypropylene fiber is absolutely resistant to corrosion and chemically inert. Its use increases the frost resistance of concrete by 20-50 cycles and improves water resistance by 1-2 grades. The material does not create cold bridges and does not require additional protection in aggressive environments.

Steel reinforcement is subject to corrosion when the protective layer of concrete is damaged, especially in aggressive operating conditions. This requires compliance with strict standards for the thickness of the protective layer and the quality of concrete. The high thermal conductivity of steel can create cold bridges in enclosing structures.

Comparison table

Application areas

Polypropylene fiber is most effective in industrial concrete floors, where abrasion resistance and shrinkage crack control are important. Mandatory use of fiber is recommended in screeds thicker than 50 mm, when installing polymer self-leveling floors, in rooms with temperature differences. The material is widely used in blind areas, pavement surfaces and structures subject to vibration loads. Fiber is especially valuable in structures operating in aggressive environments, shotcrete and repair compounds. Polymer fiber does not damage concrete pumps and allows you to abandon classic reinforcement in a number of cases.

Steel reinforcement remains indispensable for load-bearing structures of buildings and structures. Without it, it is impossible to create foundations for heavy loads, floors with large spans, bridge structures. In industrial floors, the reinforcement cage is used under high mechanical loads from heavy production equipment, intensive traffic, impact effects. Metal reinforcement ensures fire resistance of structures and can be installed in various ways - welding or tying. In seismically active regions and high-rise construction, the use of steel reinforcement is regulated by regulatory documents.

Combined use

Construction practice often involves the combined use of both reinforcement methods. Steel reinforcement provides the primary load-bearing capacity of the structure, while polypropylene fiber acts as secondary reinforcement, controlling cracking and increasing durability. This approach is especially effective in industrial floors, where the reinforcement mesh is placed in several layers for special reinforcement requirements, and the fiber is added to the concrete mix for micro-reinforcement.

The combined reinforcement method allows for the maximum use of the advantages of each material: high load-bearing capacity of reinforcement and improved performance characteristics of fiber concrete. This solution provides an optimal ratio of efficiency and cost for most critical structures. The use of concrete grade no lower than B25-B30 is a prerequisite for high-quality reinforcement by any of the methods considered.
